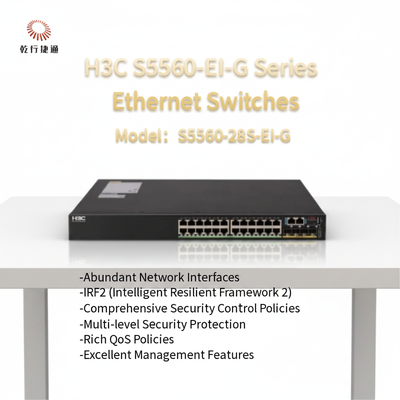

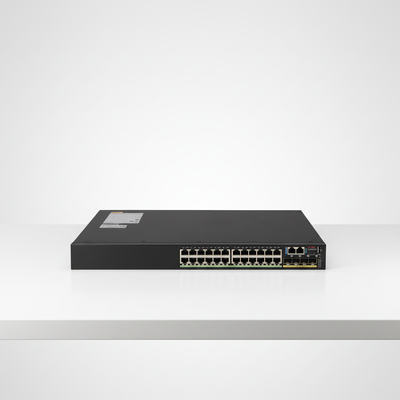

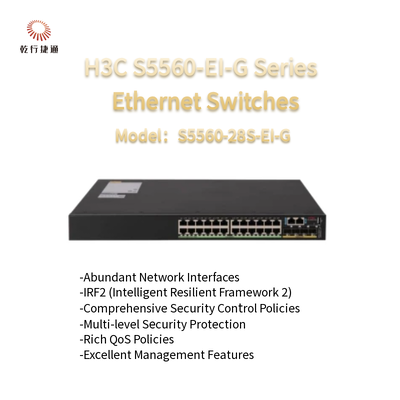

H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches

H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches
H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches

تصویر بزرگ :  H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches

جزئیات محصول:
نام تجاری: H3C
شماره مدل: S5560-28S-EI-G
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: $500-2000 pcs Negotiable
مخاطب

H3C S5560-EI-G Series S5560-28S-EI-G High-Performance Ethernet Switches

شرح
ویژگی: S5560-28S-EI-G نرخ حمل و نقل: 228 مگاپیکسل
وزن: 3.15 کیلوگرم پورت سریال مدیریت: کنسول Micro USB
SDN/OpenFlow: پشتیبانی از استاندارد OpenFlow 1.3 ویژگی های بندر: پشتیبانی از کنترل جریان IEEE802.3x (فول دوبلکس)
برجسته کردن:

H3C S5560-EI-G Ethernet switch

,

S5560-28S-EI-G high-performance switch

,

Fibre Channel Switch with warranty


H3C S5560-EI-G Series High-Performance Ethernet Switches


Product Overview

Developed by H3C, the S5560-EI-G is the latest secure controllable Ethernet switch lineup. All models come with four fixed 10GE SFP+ ports, supporting diversified authentication and encryption technologies for robust security.


Attributes S5560-28S-EI-G
Switching Capacity  1.36Tbps/13.6Tbps
Forwarding Rate 228Mpps
Dimensions (W × D × H) (Unit: mm) 440×260×44
Weight 3.15kg
Management Port  1
Management Serial Port Micro USB CONSOLE
Port: 1Serial CONSOLE
Port: 1The two ports cannot be used at the same time;
only the Micro USB CONSOLE port takes effect when both are connected
Front Panel Service Port Description 24 × 10/100/1000BASE-T electrical ports,
4 × 1G/10G BASE-X SFP+ ports
SDN/OpenFlow Support OpenFlow 1.3 standard
Support multi-controller (EQUAL mode, active/standby mode)
Support multi-table pipeline
Support Group table
Support Meter
Port Aggregation Support GE port aggregation
Support 10GE port aggregation
Support static aggregation
Support dynamic aggregation
Support cross-device aggregation
Port Features Support IEEE802.3x flow control (full duplex)
Support storm suppression based on port rate percentage
Support PPS-based storm suppression
Support bps-based storm suppression
MAC Address Table Support black hole MAC address
Support setting the maximum number of MAC address learning per port
Support setting the maximum number of MAC address learning per VLAN
VLAN Support port-based VLAN
Support MAC-based VLAN
Support QinQ, flexible QinQ
Support VLAN Mapping
Support GVRP
Layer 2 Ring Network Protocol Support STP/RSTP/MSTP
Support SmartLink
Support RRPP
Support ERPS Ethernet Ring Protection Switching (G.8032)
DHCP DHCP Client
DHCP Snooping
DHCP Relay
DHCP Relay SECURITY
DHCP Server
IRF2 Intelligent Resilient Framework Support IRF2 Intelligent Resilient Framework
Support distributed device management, distributed link aggregation, distributed elastic routing
Support stacking via standard Ethernet interface mode
Support local stacking and remote stacking
IP Routing Support static routing
Support RIPv1/v2, RIPng
Support OSPF
Support BGP4, BGP4+ for IPv6
Support equal-cost routing, policy routing
Support VRRP/VRRPv3
IPv6 Support ND (Neighbor Discovery)
Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP
Support IPv4 GRE tunnel



 Features

Abundant Network Interfaces

S5560-EI-G features diversified fixed copper & combo fiber ports for cost-effective interconnection and non-blocking 1:1 network deployment to fit varied application scenarios.

IRF2 (Intelligent Resilient Framework 2)

IRF2 virtualizes multiple physical switches into one logical device for unified administration.
  • Simplified O&M: Configure one unit to manage the entire IRF cluster instead of individual devices. Cross-device link aggregation replaces STP to cut protocol interactions and speed network convergence.
  • Flexible scaling: New devices can be hot-plugged into or removed from the fabric without service outage to protect user investment.
  • High reliability: Link aggregation delivers multi-link redundancy; automatic master switch election and real-time protocol backup realize 1:N redundancy at device and protocol layers.
  • Improved performance: Aggregate forwarding capacity and port density of all member switches to boost overall throughput greatly.


Comprehensive Security Control Policies

The switch supports MAC, 802.1X and Portal authentication plus static/dynamic binding of account, IP, MAC, VLAN and port, enabling dynamic delivery of VLAN/QoS/ACL rules and real-time illegal access control when paired with H3C iMC.Enhanced high-capacity ACL supports VLAN-based rule deployment to save ACL resources. uRPF checks inbound packets by reverse route lookup and discards invalid traffic to block source IP spoofing effectively.

Multi-layer Security Protection

Part of the lineup adopts hot-swappable AC/DC redundant power supplies, with fan speed auto-adjustment and fault alarm for improved hardware reliability.It also supports LACP, STP/RSTP/MSTP, Smart Link, RRPP, IRF2 and cross-device link aggregation to ensure fast convergence and stable service under heavy mixed traffic.

Rich QoS Policies

It provides L2~L4 traffic classification based on MAC, IP, TCP/UDP port and VLAN, alongside SP, WRR and SP+WRR queue scheduling. Bidirectional port mirroring helps traffic monitoring and troubleshooting.


Excellent Management Features

Equipped with Console and out-of-band Ethernet ports, the switch supports SNMPv1/v2/v3, CLI, Web, Telnet and SSH2.0, compatible with iMC management platform. SPAN/RSPAN with multiple observer ports facilitates traffic analysis and network optimization.Built-in TAP function enables load balancing, N:M mirroring, header editing, ACL-based traffic processing, VLAN tag stripping and GRE/NVGRE/VXLAN tunnel decapsulation.
